Optical Systems
American Aqua Installs and Services Ultra-American Aqua Treatment Systems for Optical Labs Across the United States.
Corporate ContactWater Systems for Optical Manufacturing
We design our systems around the lab’s specifications and requirements. Our systems are designed to grow.

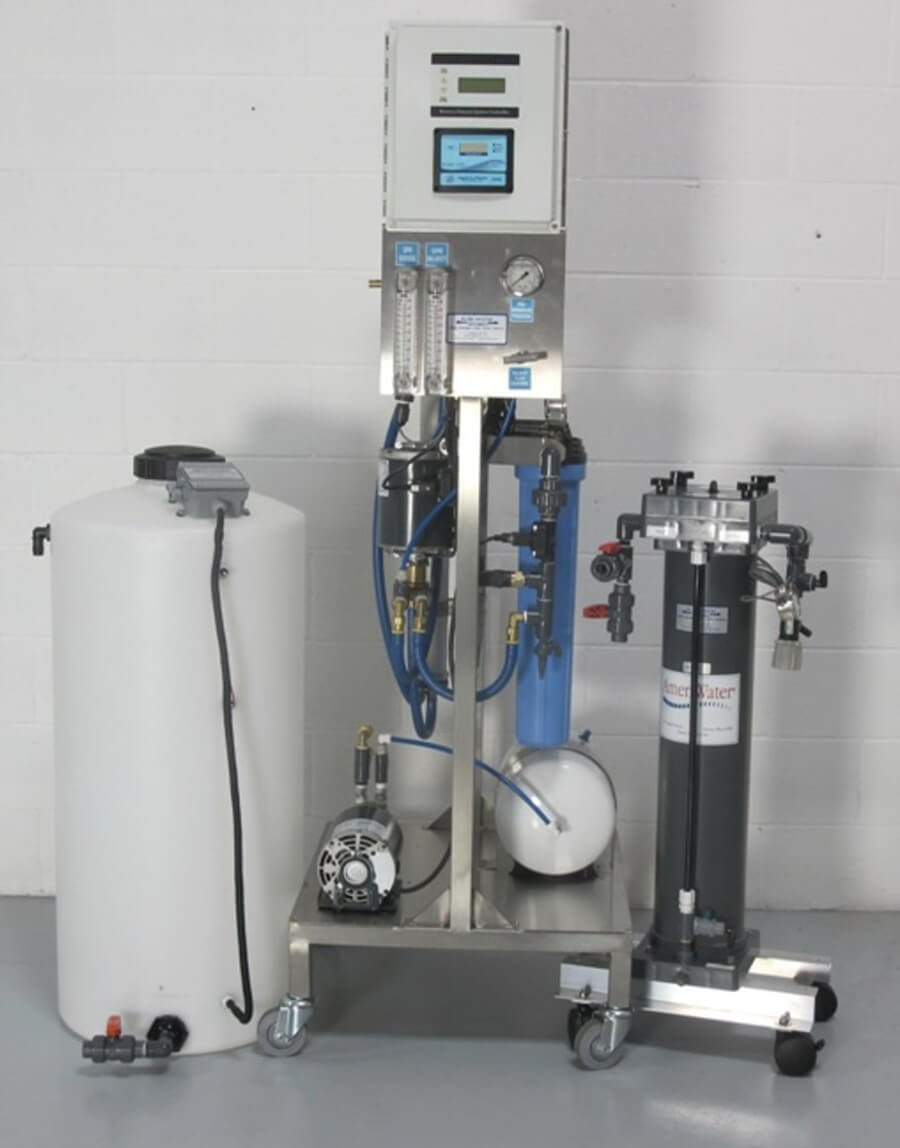

These systems are used for making the lens perfectly clean to be able to add the coating to lenses, so the lenses become anti-reflective coated. American Aqua combined the reverse osmosis with the deionization filtration process to ensure these units make the purest, cleanest water possible. These systems have incredibly efficient resin. The most economical way to achieve the quality of water needed. These systems make the water 1,000x cleaner than a surgical laboratory.These systems are designed around a lab’s need. Systems are customizable. Systems always have the opportunity to upgrade. Units are custom designed and built in our production facility in Traverse City, Michigan. Unit is shipped out on a skid, with a technician following to install equipment and train customer on system’s use and maintenance.
Estimated delivery time for these system is typically 8-12 weeks for a smaller system or 12-24 weeks for an industrial sized system.
PCZ Series Systems
- PCZ 760
- PCZ 380
- PCZ 1440
- PCZ 1200
- PCZ L1 300
- PCZ 2880
Quick Facts
- Our systems produce 1 to 18.5 million megohms of resistance to ensure ultrapure water for your process.
- SILEX: our proprietary process system allows us to use less resin than in other systems.
About PCZ Series Systems
Smallest, wall-mounted, entry level. Reverse osmosis with pretreatment, with D/I loop, 9 gallon holding tank, production of 300 gallons per day. Especially adaptive for backside coaters.
2 1/2×40” membrane, 380 gallons per day, for AR (anti-reflective) labs, CPU processor that monitor all the functions of the RO, permeate flush technology (no transmigration across the system) which maintains high quality water and prolonged membrane life. Pre treatment – 5-micron and CTO carbons, RO, DI, and UV.
Two 2 1/2×40” membranes, and is the same as the PCZ 380 but double the size.
Designed around a particular machine from ultraoptics and laboratories can do coatings – anti-reflective coatings – 300GPD – especially adaptive for backside coaters. Has a 25×2.5” membrane.
Contact Us for a Custom Proposal
We design our systems around the lab’s specifications and requirements. Our systems are designed to grow. All systems have 5-stage ultrapurification: Pre treatment – 5-micron and CTO carbons, RO, DI, and UV.
